NM Plus 300 FID Station Hydrogen Generator

NM Plus 300 FID Station Hydrogen Generator

The NM Plus 300 FID Station Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen. The horizontal format is designed to sit under and support the weight of your GC, optimizing bench space. At only 150 mm (6 in) high, the generator will still allow easy access to the injectors of any GC on the market. Deionized water is automatically loaded from smart internal system tanks with a 3 liter capacity, providing up to 3000 liters of H2 before a refill is required. The only recommended maintenance is replacement of the internal deionizing cartridge, which has been greatly simplified.

NM PLUS 300 FID STATION FEATURES:
▪︎ Flow rate 300 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-FNM300-EU (230-240V/50-60Hz)
Part# DB-FNM300-US (115V/60Hz)
Part# DB-FNM300-JP (100V/60Hz)

GC APPLICATIONS
▪︎ GC CARRIER GAS
▪︎ GC/MS CARRIER GAS
▪︎ GC FUEL GAS
▪︎ GC-ELCD & HALL ELCD REACTION GAS

SPECTROSCOPY APPLICATIONS
▪︎ ICP-MS COLLISION CELL REACTION GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
▪︎ CHEMISORPTION/PHYSISORPTION MEASUREMENT GAS

OTHER LAB APPLICATIONS
▪︎ CHEMICAL VAPOR DEPOSITION INSTRUMENTATION (CVD)

AID DEPOSITION PROCESS
▪︎ PLASMA CLEANING INSTRUMENTATION (UCP)
▪︎ HIGH EFFICIENCY PROCESS GAS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
▪︎ WEATHER BALLOON FILLING
▪︎ ELECTRONIC NOSE (eNOSE)
▪︎ 2-D CHROMATOGRAPHY
▪︎ 3-D CHROMATOGRAPHY

The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎  I/O board
▪︎ Remote control software (RS232 or USB)

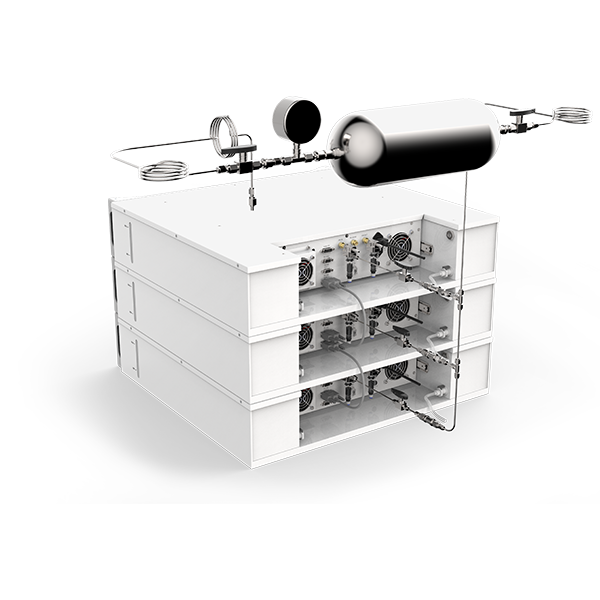

▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor
▪︎ FID-Station MS Extension

Flow mL/min 300
Purity >99.99996%
Dewpoint at 7 barg (100 psig) -73oC (-103oF)
Outlet pressure barg (psig) 1.4 to 11 (20 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system No maintenance cold dual dynamic regeneration system
Deionized water quality Minimum <1 micro S/cm @25oC - 1 Mohm-cm@25oC - ASTM II
Recommended <0.2 microS/cm @25oC - 5 Mohm-cm @25oC - ASTM II
Internal water tank liters 7
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 150
Product Dimensions mm (in) 690W x 150H x 680D (27W x 6H x 26.7D)
Product Weight kg (lb) 42 (92.5)
Shipping dimensions mm (in) 890W x 385H x 800D (35W x 15.1H x 31.4D)
Shipping weight Kg (lb) 48 (106)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Outlet connection 1/8" Compression
Certification CE, FCC, METE (UL and CSA compliant)
