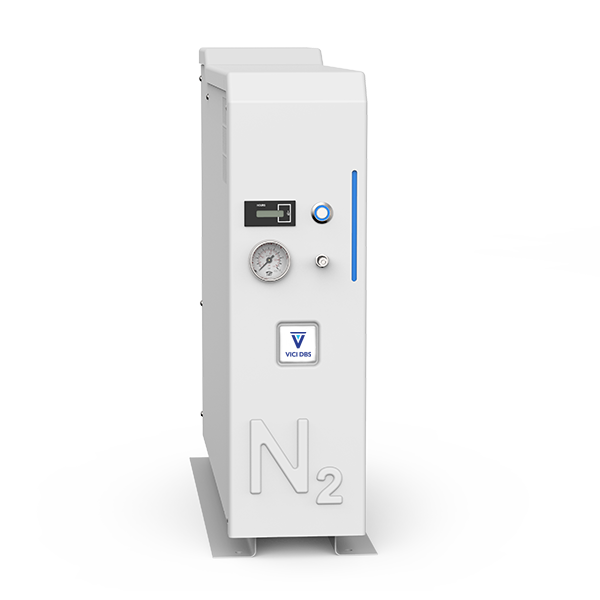

The new HP Plus 750 Tower Nitrogen Generator produces high purity nitrogen for all major applications in analytical laboratories. Nitrogen generators eliminate the problems associated with the handling of high pressure gas tanks and reduce the cost of high purity nitrogen immediately. The N2-TOWER Plus series of nitrogen generators use air from a separate compressor and remove the oxygen to less than 10ppm (hydrocarbons to 0.1 ppm is optional). The guaranteed flow rate of pure nitrogen is 750 mL/min.
HP PLUS 750 TOWER FEATURES:
▪︎ Flow rate 750 mL/min
▪︎ Purity >99.999%
▪︎ Pressure up to 5 barg (75 psig)
▪︎ Space saving design
▪︎ Propriotory carbon molecular sieve
▪︎ Optional hydrocarbon removal for GC applications
▪︎ Ideal for GC carrier gas including ECD, make up gas, TOC, DSC, and ELSD applications
▪︎ 2 year standard warranty
Part# DB-N2T-750-EU (220V/50Hz)
Part# DB-N2T-750-US (115V/60 Hz)
GC APPLICATIONS
▪︎ GC-FID CARRIER & MAKE-UP GAS
▪︎ ECD
▪︎ ELSD
▪︎ INCUBATORS
▪︎ TGA & DSC
The following option is available:
▪︎ Catalytic oven
Flow mL/min | 750 |
Purity | >99.999% |
Hydrocarbon purity (measured as methane) | 0.1 ppm |
Dewpoint ºC (ºF) | -50 (-58) |
Outlet pressure barg (psig) | up to 5 max (75) |
Inlet pressure barg (psig) | 7 to 10 (100 to 160) |
Actual inlet air requirement litres at 8 barg (116 psig) | 12 |
Recommended compressor air inlet at 8 barg (116 psig) | 24 |
Pressure drop barg (psig) | 1.5 (22) |
Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 |
Technology | Carbon molecular sieve |
Warm up time (minutes) | 60 |
LED indicators | Power on/off, system ready, errors |
Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
Power consumption watts | 270 |
Noise level | Minimal |
Product dimensions mm (in) | 140W x 490H x 630D (13.7Wx 29Hx 13.7D) |
Product weight kg (lbs) | 17 (44) |
Shipping dimensions mm (in) | 770W x 590H x 410D (30.3Wx 16.1Hx 23.2D) |
Shipping weight kg (lbs) | 22 (49) |
Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
Inlet connection | 1/4" compression |
Outlet connection | 1/8"compression |
Certification | CE, FCC |
