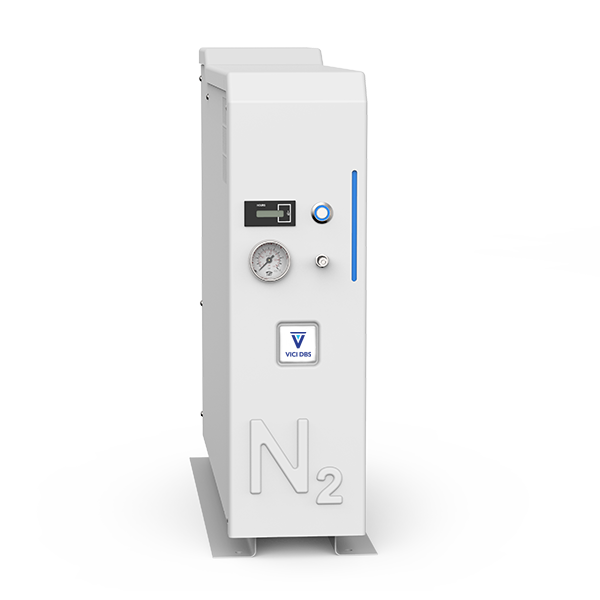

HP Plus 1300 Tower Nitrogen + HC Removal Generator

HP Plus 1300 Tower Nitrogen + HC Removal Generator

The new HP Plus 1300 Tower Nitrogen + HC Removal Generator produces high purity nitrogen for all major applications in analytical laboratories. Nitrogen generators eliminate the problems associated with the handling of high pressure gas tanks and reduce the cost of high purity nitrogen immediately. The HP Plus Tower series of nitrogen generators use air from a separate compressor and remove the oxygen to less than 10 ppm (hydrocarbons to 0.1 ppm is optional). The guaranteed flow rate of pure nitrogen is 1300 mL/min.

HP PLUS 1300 TOWER FEATURES:
▪︎ Flow rate 1300 mL/min
▪︎ Purity 99.99%
▪︎ Pressure up to 5 barg (75 psig)
▪︎ Space saving design
▪︎ Propriotory carbon molecular sieve
▪︎ Optional hydrocarbon removal for GC applications
▪︎ Ideal for GC carrier gas including ECD, make up gas, TOC, DSC, and ELSD applications
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-N2T-1300-O-EU (220V/50Hz)
Part# DB-N2T-1300-O-US (115V/60 Hz)

GC APPLICATIONS
▪︎ GC-FID CARRIER & MAKE-UP GAS
▪︎ ECD
▪︎ ELSD
▪︎ INCUBATORS
▪︎ TGA & DSC

The following option is available:
▪︎ Catalytic oven

Flow mL/min 1300
Purity 99.99%
Hydrocarbon purity (measured as methane) 0.1 ppm
Dewpoint oC (oF) -50 (-58)
Outlet pressure barg (psig) up to 5 max (75)
Inlet pressure barg (psig) 7 to 10 (100 to 160)
Actual inlet air requirement liters -at 8 barg 16
Recommended compressor air inlet at 8 barg 32
Pressure drop barg (psig) 1.5 (22)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Technology Carbon molecular sieve
Warm up time (minutes) 60 minutes
LED indicators Power on/off, system ready, errors
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 270
Noise level Minimal
Product dimensions mm (inches) 140W x 490H x 630D (5.5W x 19.3H x 24.8D)
Product weight kg (lb) 17 (44)
Shipping dimensions mm (inches) 770W x 590H x 410D (30.3W x 16.1H x 23.2D)
Shipping weight kg (lbs) 22 (49)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Inlet connection 1/4" compression
Outlet connection 1/8" compression
Certification CE, FCC
