VICI DBS HK PLUS 250 HYDROGEN GENERATOR

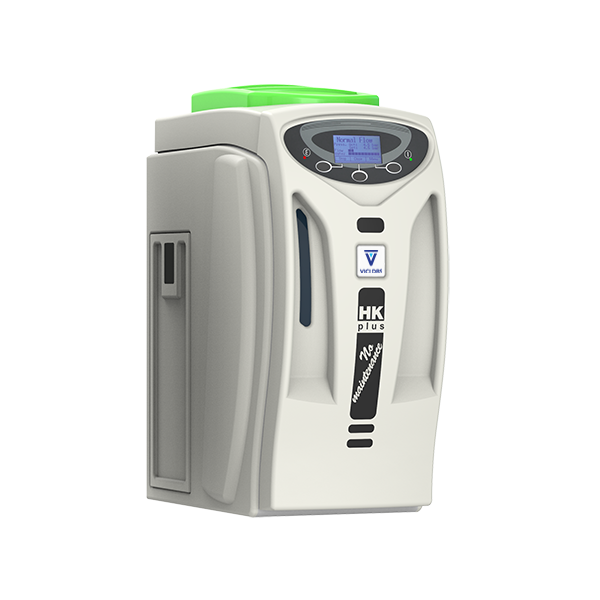

HK Plus 250 Hydrogen Generator

The HK Plus 250 Hydrogen Generator provides superior performance with proprietary electrolytic cell technology combined with high quality components and a unique hydrogen drying solution.

HK PLUS 250 FEATURES:
▪︎ Flow rate 250 mL/min
▪︎ Purity 99.999%
▪︎ Pressure up to 7 barg (100 psig)
▪︎ Minimal maintenance
▪︎ Unique drying membrane - no desiccant cartridges required
▪︎ Unique 100% titanium electrolytic cell
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-PHK250-EU (230-240V/50-60Hz)
Part# DB-PHK250-US (115V/60Hz)
Part# DB-PHK250-JP (100V/60Hz)

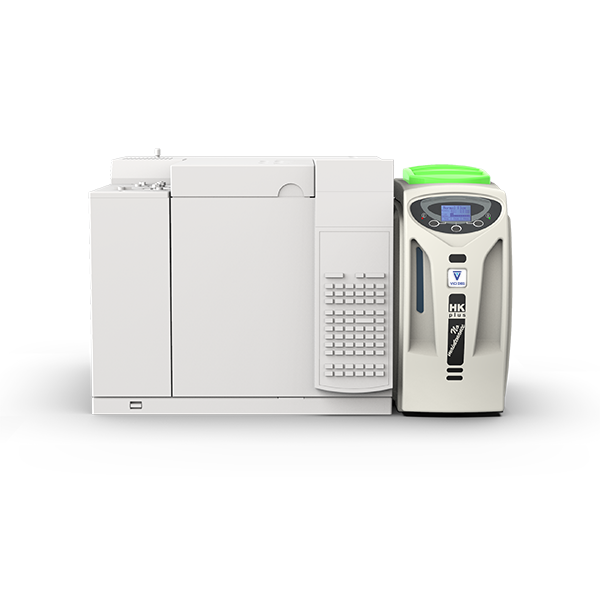

PRODUCTS FOR GC
▪︎ GC-FID FUEL GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-NPD PLASMA GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS

OTHER LAB APPLICATIONS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS

The following options are available:
▪︎ N/A

Flow mL/min 250
Purity 99.999%
Dew point at 7 barg (100 psig) -25 oC (-77 oF)
Outlet pressure barg (psig) 0.5 to 7 (7 to 100)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system Regenerative Permeation Membrane
Deionized water quality minimum <1 micro S/cm @25oC - 1 Mohm-cm@25oC - ASTM II recommended <0.2 microS/cm @25oC - 5 Mohm-cm @25oC - ASTM II
Internal water tank (liters) 2.5
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 140
Dimensions mm (in) 230W x 480H x 370D (9W x 19H x 15D)
Product Weight kg (lbs) 13 (28.5)
Shipping box dimensions 580W x 570H x 400D (22.8W x 22.4H x 15.7D)
Shipping weight Kg (lbs) 17 (37.5)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Outlet connection 1/8" Compression
Certification CE, FCC, MET (UL and CSA compliant)
