Overview
DESCRIPTION

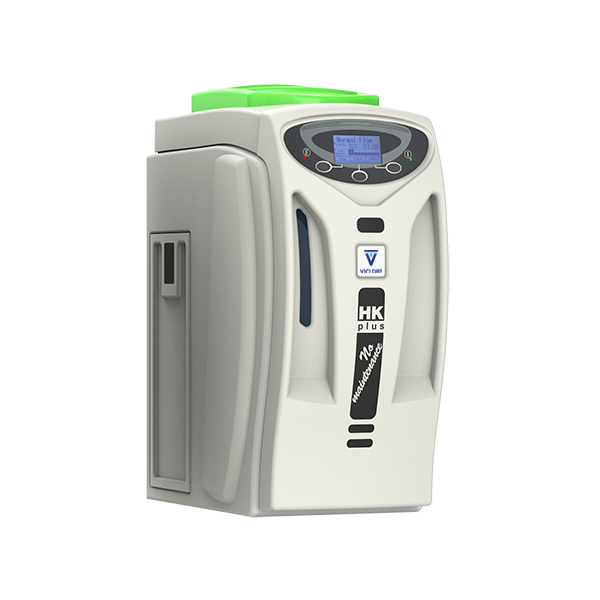

The HK Plus 160 Hydrogen Generator* provides superior performance with proprietary electrolytic cell technology combined with high quality components and a unique hydrogen drying solution. *MINIMUM ORDER OF 5 GENERATORS
HK PLUS 160 FEATURES:
▪︎ Flow rate 160 mL/min
▪︎ Purity +99.999%
▪︎ Pressure up to 7 barg (100 psig)
▪︎ Minimal maintenance
▪︎ Unique drying membrane - no desiccant cartridges required
▪︎ Unique 100% titanium electrolytic cell
▪︎ 2 year standard warranty
Part# DB-PHK160-EU (230-240V/50-60Hz)
Part# DB-PHK160-US (115V/60Hz)
Part# DB-PHK160-JP (100V/60Hz)
APPLICATIONS

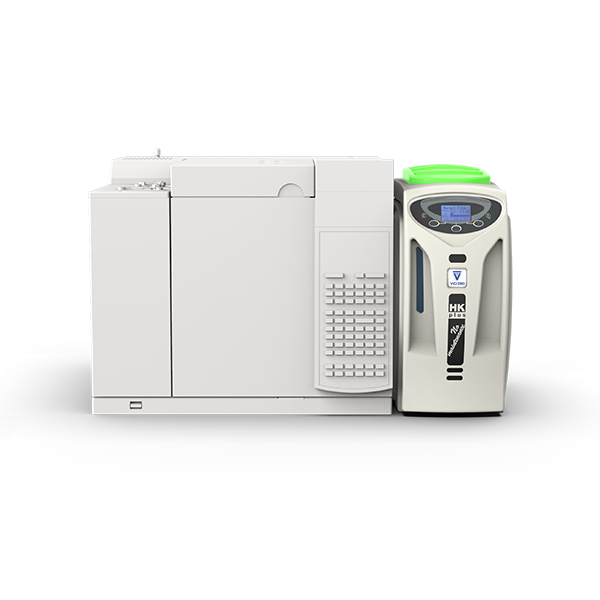

PRODUCTS FOR GC
▪︎ GC-FID FUEL GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-NPD PLASMA GAS
ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
OTHER LAB APPLICATIONS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
OPTIONS
The following options are available:
▪︎ N/A
SPECS
| Flow mL/min | 160 |
| Purity | +99.999% |
| Dew point at 7 barg (100 psig) | -25 ºC (-13 ºF) |
| Outlet pressure barg (psig) | 0.5 to 7 (7 to 100) |
| Technology |
PEM (Proton Exchange Membrane) - 100% Titanium cell
|
| Drying system |
Regenerative Permeation Membrane
|
| Deionized water quality |
minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
|
| Internal water tank (liters) | 2.5 |
| Safety |
Automatic shut down - internal/external hydrogen leak, overpressure and low water
|
| Display |
Touch screen with operating parameters, system status and safety alarms
|
| LED indicators |
Power on / off, system ready, errors
|
| Interface | USB mod A |
| Electrical supply |
110-120V 60Hz / 220-240V 50Hz
|
| Power consumption watts | 95 |
| Dimensions mm (in) |
230W x 507H x 370D (9W x 19H x 15D)
|
| Product Weight kg (lbs) | 13 (28.5) |
| Shipping box dimensions |
580W x 570H x 400D (22.8W x 22.4H x 15.7D)
|
| Shipping weight Kg (lbs) | 17 (37.5) |
| Operating temperature ºC (oF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" Compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
