VICI DBS GT 6000 Ultra-Zero Air Generator

GT Plus 6000 Ultra-Zero Air Generator

The GT Plus 6000 Ultra-Zero Air Generator are designed to supply ultra pure hydrocarbon-free zero air for GC-FID applications. Catalytic oxidation technology eliminates hydrocarbons to 0.1ppm, resulting in a flat, stable baseline, increased sensitivity, and repeatable analysis.

The GT Zero Air Generator removes CO, CO2, NOX, SOX, and water vapor, making it ideal for demanding applications such as TOC, continuous emissions monitoring, and process control applications.

GT PLUS 6000 ZERO AIR FEATURES:
▪︎ Flow rate 6000 ml/min
▪︎ Pressure up to 10 bar (145 psi)
▪︎ Zero air purity 0.1 ppm HC, 5 ppm CO2, 0.1 ppm CO, 0.1 ppm NOX and SOX
▪︎ Minimal maintenance
▪︎ 2 year standard warranty

Part# DB-NGT6000-EU (230-240V/50-60Hz)
Part# DB-NGT6000-US (100-110V/60Hz)

PRODUCTS FOR ANALYZERS
▪︎ CEM CONTINUOUS EMISSIONS MONITORING
▪︎ CO2 ANALYZERS
▪︎ EMISSIONS ANALYZERS
▪︎ STACK GAS SAMPLER
▪︎ ONLINE AND LABORATORY TOC
▪︎ ONLINE AND LABORATORY FT

The following options are available:
▪︎ N/A

Flow ml/min. 6000
Purity - hydrocarbons <0.1ppm
Purity - CO <0.1ppm
Purity - CO2 <5ppm
Purity - NOx <0.1ppm
Purity - S0x <0.1ppm
Dew point -50 oC
Inlet pressure bar (psi) 4.5 to 10 (65 to 145)
Outlet pressure bar (psi) 1 bar (15 psi) drop from inlet
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 3.2.2
Max HC in 100ppm
Max CO in 50ppm
Technology Platinum catalyst
LED indicators Power on / off, system ready, errors
Warm up time (minutes) 45
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 565

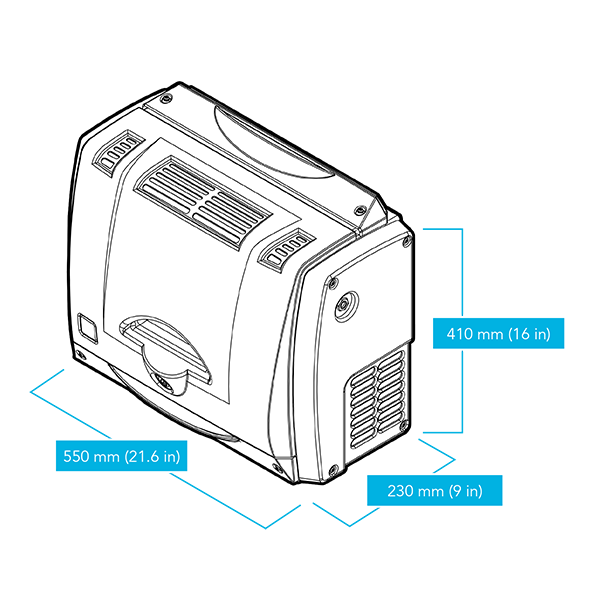

Product dimensions mm (inches) 550W x 410H x 230D ( 21.6W x 16H x 9D)
Product weight kg (lb.) 15 (33)
Shipping dimensions mm (inches) 650W x 390H x 560D ( 25.6W x 15.3H x 22D)
Shipping weight kg (lbs.) 19 (42)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Inlet connection 1/4" compression
Outlet connection 1 /8" compression
Certification CE, MET, FCC
