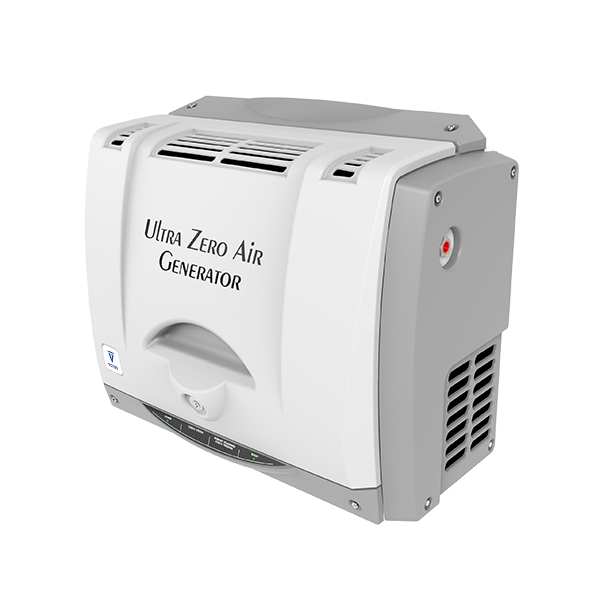

GT Plus 1500 Ultra-Zero Air Generator

VICI DBSSKU: DB-NGT1500

Please wait…

Overview

The GT Plus 1500 Ultra-Zero Air Generator are designed to supply ultra pure hydrocarbon-free zero air for GC-FID applications. Catalytic oxidation technology eliminates hydrocarbons to 0.1 ppm, resulting in a flat, stable baseline, increased sensitivity, and repeatable analysis.

The GT Zero Air Generator removes CO, CO2, NOX, SOX, and water vapor, making it ideal for demanding applications such as TOC, continuous emissions monitoring, and process control applications.

GT PLUS 1500 ZERO AIR FEATURES:
▪︎ Flow rate 1500 mL/min
▪︎ Pressure up to 10 barg (145 psig)
▪︎ Zero air purity 0.1 ppm HC, 5 ppm CO2, 0.1 ppm CO, 0.1 ppm NOX and SOX
▪︎ Minimal maintenance
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-NGT1500-EU (230-240V/50-60Hz)
Part# DB-NGT1500-US (100-110V/60Hz)

PRODUCTS FOR ANALYZERS
▪︎ CEM CONTINUOUS EMISSIONS MONITORING
▪︎ CO2 ANALYZERS
▪︎ EMISSIONS ANALYZERS
▪︎ STACK GAS SAMPLER
▪︎ ONLINE AND LABORATORY TOC
▪︎ ONLINE AND LABORATORY FT

The following options are available:
▪︎ N/A

Flow mL/min 1500
Purity - hydrocarbons <0.1 ppm
Purity - CO <0.1 ppm
Purity - CO2 <5 ppm
Purity - NOx <0.1 ppm
Purity - S0x <0.1 ppm
Dew point ºC (oF) -50 (-58)
Inlet pressure barg (psig) 4.5 to 10 (65 to 145)
Outlet pressure barg (psig) 1 (15) drop from inlet
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max HC in 100 ppm
Max CO in 50 ppm
Technology Platinum catalyst
LED indicators Power on/off, system ready, errors
Warm up time (min) 45
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 220
Product dimensions mm (in) 550W x 410H x 230D (21.6W x 16H x 9D)
Product weight kg (lbs) 10 (22)
Shipping dimensions mm (in) 650W x 390H x 560D (25.6W x 15.3H x 22D)
Shipping weight kg (lbs) 14 (31)
Operating temperature ºC (oF) 15 to 35 (59 to 95)
Inlet connection 1/4" compression
Outlet connection 1/8" compression
Certification CE, FCC, MET (UL and CSA compliant)
