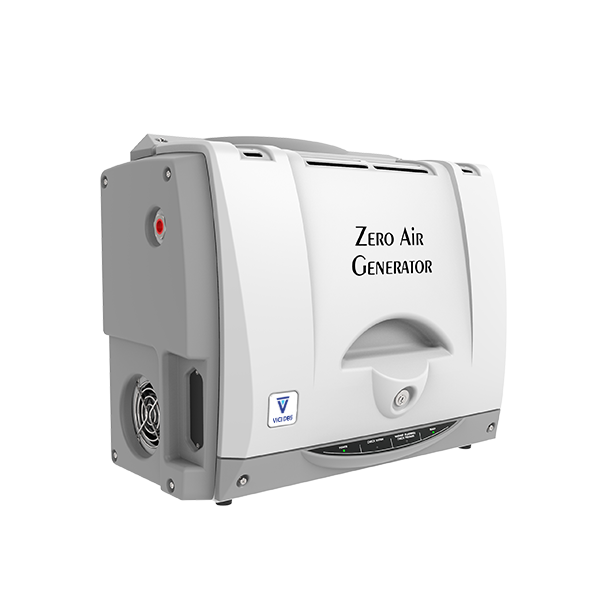

GC Plus 6000 Zero Air Generator

The GC Plus 6000 Zero Air Generator is designed to supply ultra-pure hydrocarbon-free zero air for GC-FID applications. Catalytic oxidation technology eliminates hydrocarbons to 0.1ppm, resulting in a flat, stable baseline, increased sensitivity, and repeatable analysis.

GC PLUS 6000 ZERO AIR FEATURES:
▪︎ Flow rate 6000 ml/min
▪︎ Pressure up to 10 bar (145 psi)
▪︎ Zero air purity <0.1 ppm HC
▪︎ Minimal maintenance
▪︎ 2 year standard warranty

Part# DB-NGC6000-EU (230-240V/50-60Hz)
Part# DB-NGC6000-US (100-110V/60Hz)

 GC APPLICATIONS
▪︎ GC-FID FUEL GAS
▪︎ GC-NPD PLASMA GAS
▪︎ GC-FPD FUEL GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS

The following option is available:
▪︎ N/A

Flow ml/min. 6000
Purity - hydrocarbons <0.1ppm
Purity - CO <0.1ppm
Inlet pressure bar (psi) 4.5 to 10 (65 to 145)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 3.2.2
Max outlet pressure bar (psi) 1 bar (15 psi) drop from inlet
Max HC in 100ppm
Max CO in 50ppm
Technology Platinum catalyst
LED indicators Power on / off, system ready, errors
Warm up time (minutes) 45
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 550
Product dimensions mm (inches) 550W x 410H x 230D ( 21.6W x 16H x 9D)
Product weight kg (lb) 11 (24)
Shipping dimensions mm (inches) 650W x 390H x 560D ( 25.6W x 15.3H x 22D)
Shipping weight kg (lbs) 15 (33)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Inlet connection 1/4" compression
Outlet connection 1 /8" compression
Certification CE, MET, FCC
