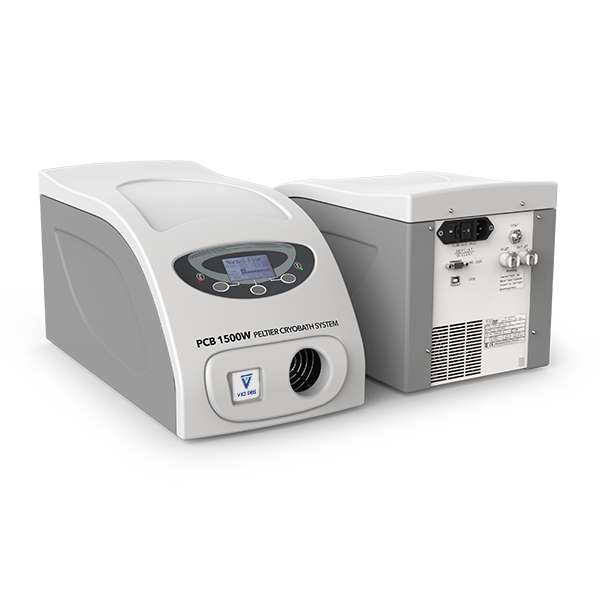

PCB 1500W Peltier Cryobath
VICI DBS PCB 1500 PELTIER CRYOBATH
Roll over image to zoom in
PCB 1500W Peltier Cryobath
VICI DBS PCB 1500 PELTIER CRYOBATH

PCB 1500W Peltier Cryobath

VICI DBSSKU: DB-PCB-1500
Price:
Quote Only
Request Quote

Overview

Our accurate Peltier temperature controllers feature a wide temperature control range of 20 to 60°C (68 to 140°F) and can be made to accompany a variety of cell holder configurations (single cell, 1x1, 6x6, etc.). It is suitable for all water-thermostated cuvette holders (not included). The PCB 1500W includes an internal Peltier block for either heating or cooling of the circulating water.

Part# DB-PCB-1500-EU(220-240V/50-60Hz)
Part# DB-PCB-1500-US(115-120V/50-60Hz)

• User-friendly interface and digital display
• Local or remote control
• Built-in stirring control
• Dual voltage settings (110V/220V)
• CE mark

Operating temp ºC (ºF) 20 to 60 (68 to 140)
Temperature Accuracy ºC (ºF) +/- 0.2 (0.36)
Temperature Precision +/- 0.1 (0.18)
Managing Peltier Cell Directly No
Interface RS-232 or USB
Display Digital
LED Indicators Power On/Off, Errors
Electrical Suppy 220-240V 50-60 Hz / 110-120V 50-60Hz
Power Consumption watts 160

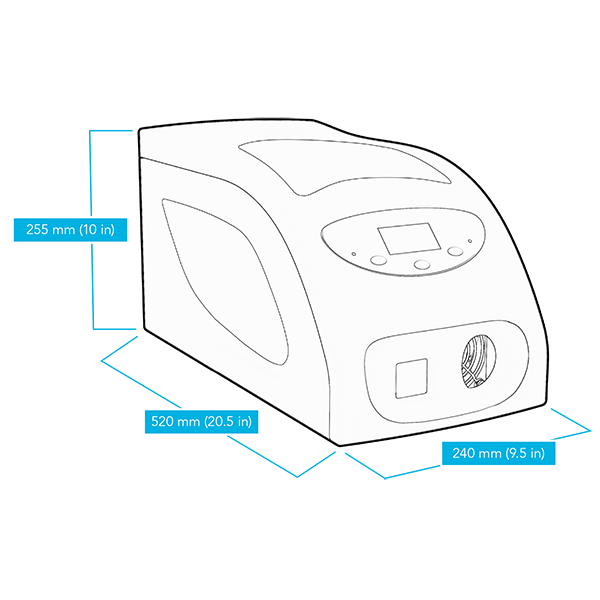

Dimensions mm (in) 240W x 255H x 520D (9.5W x 10H x 20.5D)
Weight kg (lb) 10 (22)
Shipping Dimensions mm (in) 330W x 390H x 595D (13W x 15.4H x 23.4D)
Shipping weight kg (lb) 14 (31)
Inlet connection Rapid water fitting PMCD female 1/8"
Outlet connection Rapid water fitting PMCD female 1/8"
Certification CE, cMETus (UL and CSA compliant)
