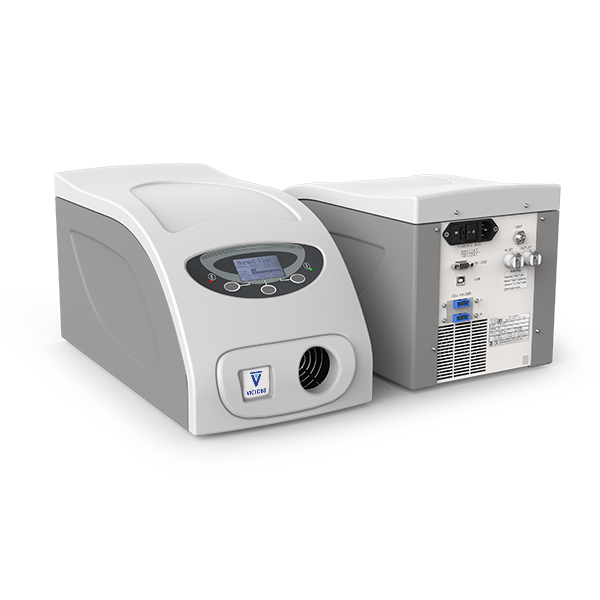

PCB 1500 High Performance Peltier Cryobath


Please wait…


The PCB 1500 High Performance Peltier Cryobath is a Peltier-controlled external water re-circulator ideal for all thermostatic cell holders. As a stand-alone external accessory, it requires no electronic or physical modifications to the cell holders. The principal feature of this device is that the water is heated and cooled using Peltier elements, allowing a very wide temperature range as well as providing excellent temperature accuracy. In addition, heating and cooling ramps can be programmed locally or remotely (remote software not included).

The standard PCB model includes an internal Peltier block for either heating or cooling of the circulating water.

PCB 1500 High Performance Peltier Cryobath features:
• User-friendly interface and digital display
• Local or remote control
• Dual voltage settings (110V / 220V)

Part# DB-PCB-HP-EU (220-240V/50-60Hz)
Part# DB-PCB-HP-US (115-120V/50-60Hz)

• Wide temperature range, from 4ºC to 90ºC (39ºF to 194ºF)
• Excellent temperature accuracy

The following options are available:
• Remote software
• Cuvette holder

Operating temp ºC (ºF) 4 to 90 (39 to 194)
Temperature Accuracy ºC (ºF) +/- 0.2 (0.36)
Temperature Precision +/- 0.1 (0.18)
Managing Peltier Cell Directly No
Interface RS-232 or USB
Display Digital
LED Indicators Power On/Off, Errors
Electrical Suppy 220-240V 50-60 Hz / 110-120V 50-60Hz
Power Consumption watts 160
Dimensions mm (in) 240W x 255H x 520D (9.5W x 10H x 20.5D)
Weight kg (lb) 15 (33)
Shipping Dimensions mm (in) 330W x 390H x 595D (13W x 15.4H x 23.4D)
Shipping weight kg (lb) 19 (42)
Inlet connection Rapid water fitting PMCD female 1/8"
Outlet connection Rapid water fitting PMCD female 1/8"
Certification CE, cMETus (UL and CSA compliant)
