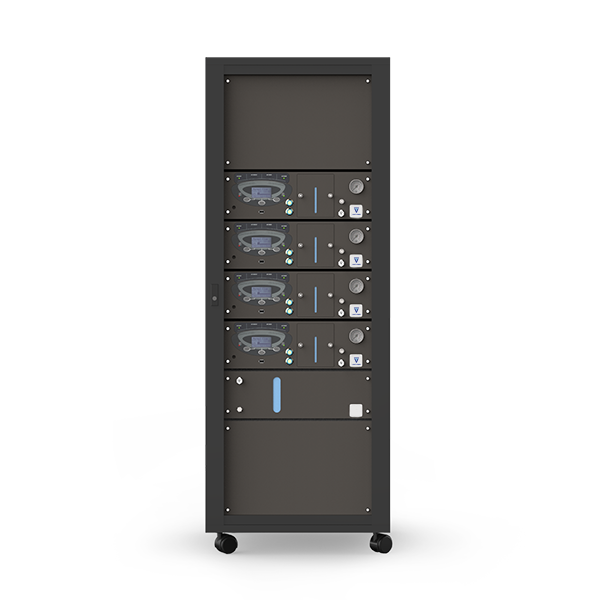

VICI DBS NM PLUS 100 RACK HYDROGEN GENERATOR CASCADING
VICI DBS NM PLUS 100 RACK HYDROGEN GENERATOR SCHEMATIC DRAWING

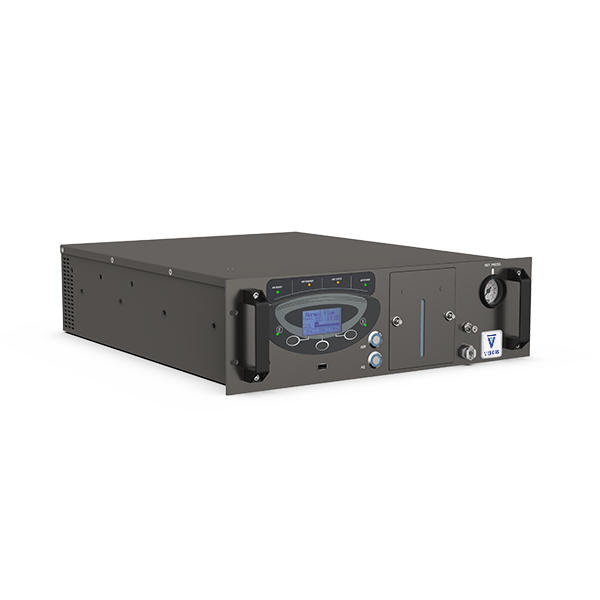

NM Plus 100 Rack Hydrogen Generator

VICI DBSSKU: DB-RNM100
Request Quote

Overview

The NM Plus 100 Rack Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce high purity hydrogen. The exclusive “No Maintenance” gas column cold regeneration system eliminates all the downtime for maintenance that is typical of other systems on the market, assuring the best hydrogen purity at all times.

NM PLUS 100 RACK FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ No maintenance cold dual dynamic regeneration drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2-year standard warranty

View Product Brochure

Part# DB-RNM100-EU (230-240V/50-60Hz)
Part# DB-RNM100-US (115V/60Hz)
Part# DB-RNM100-JP (100V/60Hz)

PRODUCTS FOR ANALYZERS
▪︎ PROCESS GC ANALYZERS DETECTOR FUEL & OXIDANT GAS
▪︎ EMISSIONS TEST ANALYZERS FUEL & OXIDANT GAS
▪︎ STACK GAS ANALYZERS FUEL & OXIDANT GAS

OTHER LAB APPLICATIONS
▪︎ ONBOARD GAS SUPPLY FOR MOBILE LABORATORIES

The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity)
▪︎ Refill station (water tank) 3U or 2U
▪︎ Rack enclosure

Flow mL/min 100
Purity >99.99996%
Dewpoint at 7 barg (100 psig) -73 ºC (-103 ºF)
Outlet pressure barg (psig) 1.4 to 11 (20 to 160)
Technology PEM (Proton Exchange Membrane) - 100% titanium cell
Drying system No maintenance cold dual dynamic regeneration system
Deionized water quality Minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II
Recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
External water tank (liters) External 10 liter bottle and internal pump
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status, and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 90
Product dimensions mm (in) 19" rack W - 3U H - 500D (19.6)
Product weight kg (lbs) 19 (41.8)
Shipping dimensions mm (in) 720W x 375H x 565D (28.3W x 14.7H x 22.2D)
Shipping weight kg (lbs) 23 (50)
Operating temperature ºC ( ºF) 15 to 35 (59 to 95)
Outlet connection 1/8" compression
Certification CE, FCC, MET (UL and CSA compliant)
