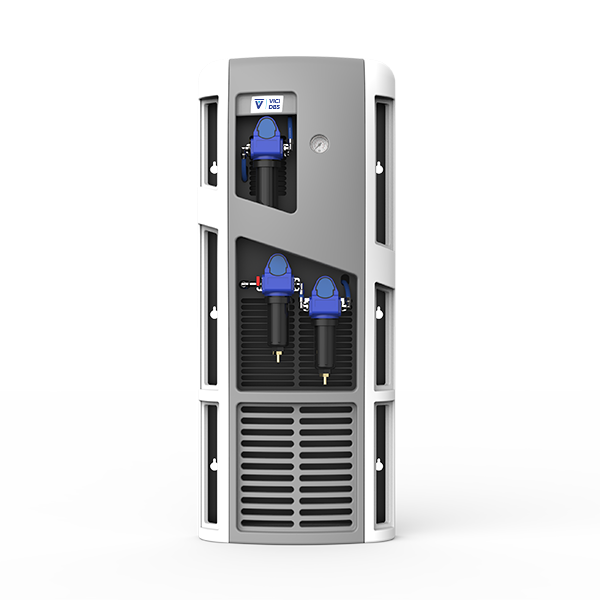

Whisper  0-40 Nitrogen Generator

Whisper 0-40 Nitrogen Generator

The Whisper 0-40 Nitrogen Generator has been developed to meet the flow, purity and pressure requirements of LCMS applications. It can also be used for the evaporation of solvents in samples being analyzed. The simple, high efficiency membrane technology separates nitrogen from the other components of a compressed air supply. The low pressure drop (1 bar)  means that the Whisper can share a dry, oil-free compressed air source already in the lab.

WHISPER 0-40 FEATURES:
▪︎ Flow rate 40 l/min
▪︎ Purity - 97% @ 40 lpm / 99% @ 20 lpm
▪︎ Pressure up to 10 bars (160 psi)
▪︎ Minimal maintenance
▪︎ Integrated economy mode as standard
▪︎ Proprietary membrane technology
▪︎ 2 year standard warranty

Part# DB-WN2-0-40

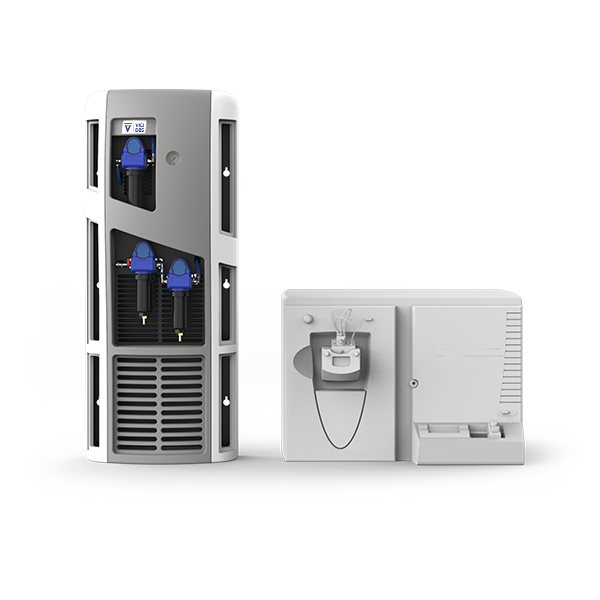

PRODUCTS FOR LC/MS INSTRUMENTS
▪︎ NEBULIZING GAS
▪︎ CURTAIN GAS
▪︎ SHIELD GAS
▪︎ SHEATH GAS
▪︎ ELECTROSPRAY GAS
▪︎ APCI GAS
▪︎ JET STREAM GRADIENT

PRODUCTS FOR SPECTROSCOPY
▪︎ NUCLEAR MAGNETIC RESONANCE SPECTROMETERS (NMR)

PRODUCTS FOR ANALYZERS
▪︎ THERMAL ANALYZERS (TGA/DSC)

OTHER LAB APPLICATIONS
▪︎ SAMPLE CONCENTRATORS
▪︎ EVAPORATIVE LIGHT SCATTERING DETECTOR (ELSD)
▪︎ CORONA DETECTORS
▪︎ CHARGED AEROSOL (CAD)
▪︎ SAMPLE EVAPORATORS
▪︎ CELL INCUBATORS
▪︎ IVF STEM CELL INCUBATORS
▪︎ MASK ALIGNER
▪︎ FUME HOOD/ CABINET PURGE
▪︎ 3D PRINTER INERTING
▪︎ GLOVE BOX PURGE

The following options are available
▪︎ 10 Lt. Tank
▪︎ 10 mt. Tube
▪︎ Special 100% teflon tubing

Flow lpm 40
Purity 97% @ 40 lpm
99% @ 20lpm
Dew point -50oC
Outlet pressure bar (psi) 7 (100)
Inlet pressure bar (psi) 8.5 to 10 (123 to 160)
Actual inlet air requirement liters 120
Recommended compressor air inlet 240
Pressure drop bar (psi) 1.5 (22)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 3.2.2
Technology Membrane
Warm up time (minutes) none
Electrical supply none
Noise level none
Product dimensions mm (inches) 480W x 1300H x 300D (18.9W x 51.2H x 11.8D)
Product weight kg (lb.) 15 (33)
Shipping dimensions mm (inches) 1270W x 375H x 590D (50W x 14.8H x 23.2D)
Shipping weight kg (lbs.) 22 (49)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Inlet connection 3/8" G
Outlet connection 1/4" compression
Certification CE
