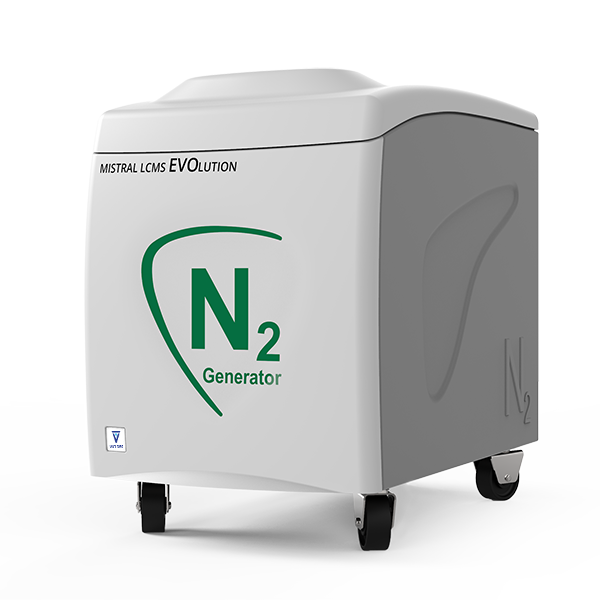

Mistral Evolution Gas Station Nitrogen Generator

VICI DBSSKU: DB-EVO

Please wait…

Overview

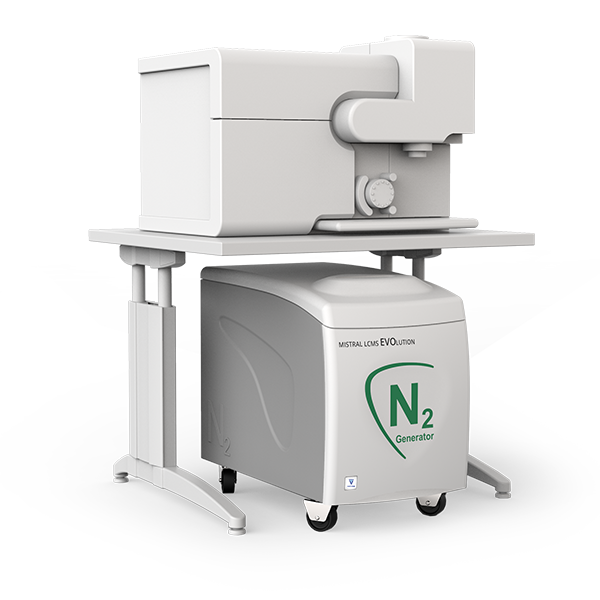

The new Mistral Evolution Gas-Station is the global dedicated solution for the Microwave Agilent 4100MP system. The well-known and proven pressure swing adsorption (PSA) technology is used to simultaneously generate nitrogen and dry air. This combination allows the system to stabilize quickly and be ready faster. Thanks to a specialized insulation, the Mistral EVO Gas-Station can be installed in the laboratory near the instrument or underneath the laboratory bench.

MISTRAL EVOLUTION GAS STATION FEATURES:
▪︎ Flow rate up to 25 L/min
▪︎ Purity 99.5%
▪︎ Pressure up to 7 barg (100 psig)
▪︎ Oil free, low noise compressor options
▪︎ Proprietary carbon molecular sieve technology
▪︎ Complete 'plug and play' LC/MS solution
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-EVO-10-EU (220V/50Hz)
Part# DB-EVO-10-US (115V/60Hz)

Part# DB-EVO-GS-EU (220v/50Hz)
Part# DB-EVO-GS-EU (115V/60Hz)

MICROWAVE PLASMA ATOMIC EMISSION SPECTROMETRY
▪︎ AGILENT MP AES 4100 & 4200

The following option is available:
▪︎ N/A

Nitrogen flow rate L/min 25 @ 5.5 barg (80 psig)
Air 1 - flow rate lpm 35 @ 5.5 bar (80 psig)
Nitrogen Purity 99.5%
Dewpoint ºC (ºF) -40 (-40)
Outlet pressure barg (psig) 7 (100)
Technology Carbon molecular sieve
Warm up time (minutes) 20
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 2700

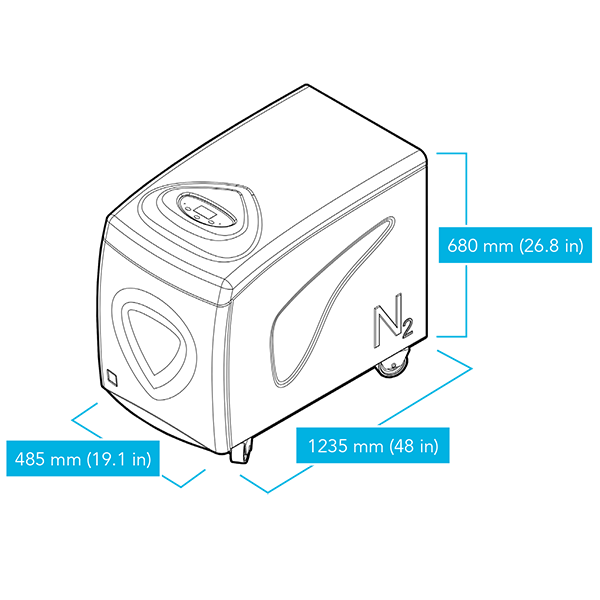

Producr dimensions mm (in) 482W x 641H x 1235D (18.9W x 25H x 48D)
Product weight kg (lbs) 110 (243)
Shipping dimensions mm (in) 550W x 800H x 940D (21.6W x 31.4H x 37D)
Shipping weight kg (lbs) 141 (311)
Operating temperature ºC ( ºF) 15 to 35 (59 to 95)
Outlet connection 2 x 6 mm OD compression or 1/4"
Certification CE, FCC, MET (UL and CSA compliant)
