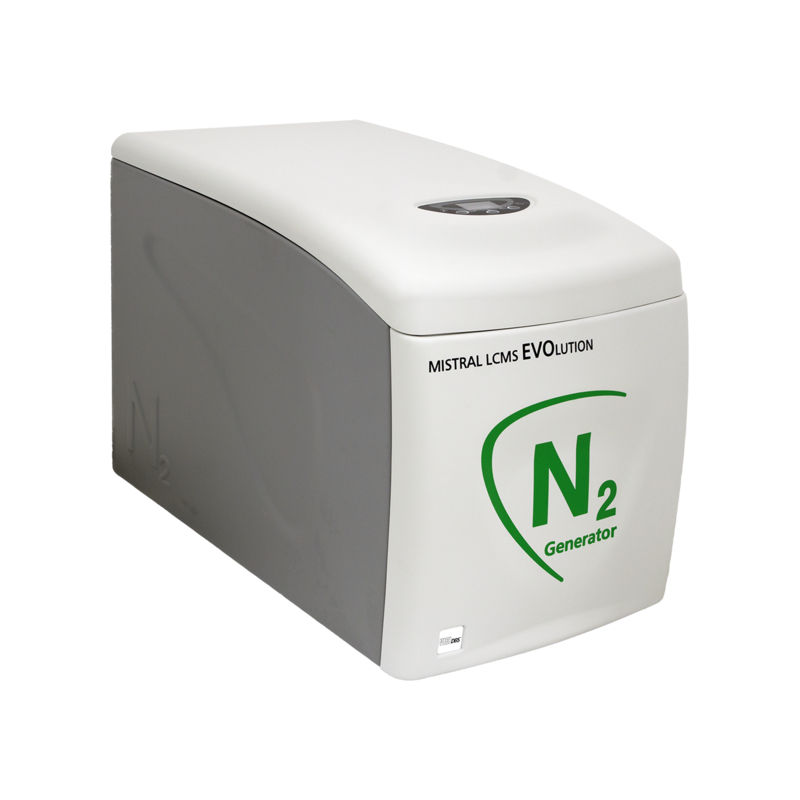

ELSD 35L Mistral Evolution Nitrogen Generator

The VICI DBS 35L ELSD Mistral Evolution Nitrogen Generator is specifically designed and built to meet the flow, purity, and pressure requirements of today’s LC-MS systems. It can also be used for the evaporation of solvents in samples being analyzed. The simple but well-proven pressure swing adsorption (PSA) technology is used to separate nitrogen from the other gases present in compressed air.

35L ELSD MISTRAL EVOLUTION FEATURES:
▪︎ Nitrogen flow rate 35 l/min
▪︎ Pressure up to 8 bar (116 psi)
▪︎ Nitrogen purity >99.0 %
▪︎ Minimal maintenance
▪︎ 2 year standard warranty

Part # DB-EVO-35-EU (220V/50Hz)
Part # DB-EVO-35-US (115V/60Hz)

PRODUCTS FOR LC/MS
▪︎ LC-MS INSTRUMENTS: NEBULIZING GAS | CURTAIN GAS | SHIELD GAS | SHEATH GAS | ELECTROSPRAY GAS | APCI GAS | JET STREAM GRADIENT

PRODUCTS FOR SPECTROSCOPY
▪︎ FOURIER TRANSFORM INFRARED SPECTROMETER (FT-IR)

OTHER LAB APPLICATIONS
▪︎ EVAPORATIVE LIGHT SCATTERING DETECTOR (ELSD)
▪︎ CORONA DETECTORS
▪︎ CHARGED AEROSOL (CAD)
▪︎ SAMPLE EVAPORATORS
▪︎ CELL INCUBATORS
▪︎ IVF STEM CELL INCUBATORS

Nitrogen flow rate: 35 Nl/min
Purity N2: >99.5 %
Pressure Nitrogen Outlet: Max 8 bar (116 psi)
Voltage: 110V / 60Hz - 230V / 50Hz
Weight: 90 Kg net
Consumption: 1800 W
Pressure accuracy: 0.1 bar (± 0.5 %)
Display: Graphic Display, 128 x 64 px
Protection: IP2x
Temperature: From 15 °C to 40 °C
Noise: < 60 dB(A)
Alarm relay: 250 VAC, 16 A max
Outlet Nitrogen: Outlet, rapid fitting for 6mm OD tube
Dimensions (mm): 482 x 835 x 641 (L x P x A)
Certification: CE, CSA, FCC
