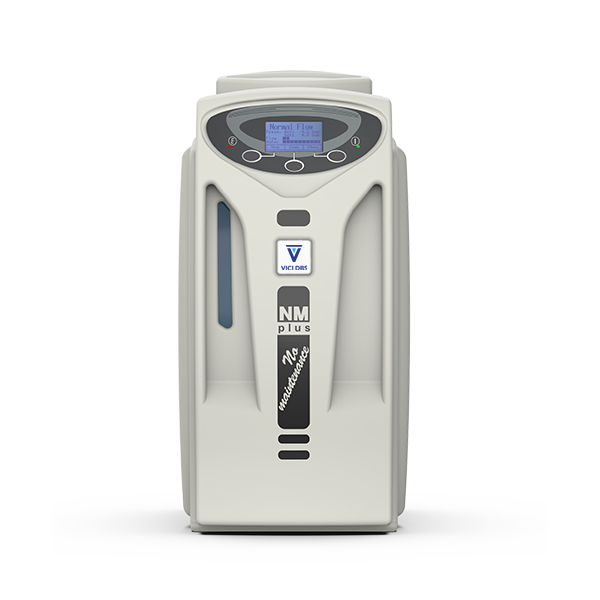

NM Plus 400 Hydrogen Generator

The NM Plus 400 Hydrogen Generator enhances the high performance of the PG Plus with the addition of a unique no-maintenance purification system, resulting in ultra high purity carrier grade gas. The highly sophisticated software control and safety alarm capability maximize the benefits of using hydrogen carrier gas while minimizing the safety concerns.

NM PLUS 400 FEATURES:
▪︎ Flow rate 400 ml/min
▪︎ Purity 99.99996%
▪︎ Pressure up to 11 bar (160 psig)
▪︎ Unique patented automatic dryer system
▪︎ Unique 100% titanium electrolytic cell
▪︎ 2 year standard warranty

Part# DB-PNM400-EU (230-240V/50-60Hz)
Part# DB-PNM400-US (115V/60Hz)
Part# DB-PNM400-JP (100V/60Hz)

GC APPLICATIONS

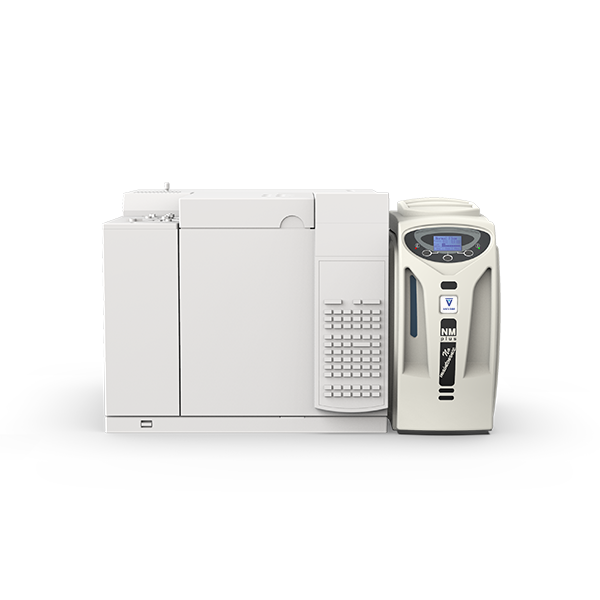

▪︎ GC/MS CARRIER GAS
▪︎ GC CARRIER GAS
▪︎ GC FUEL GAS
▪︎ GC-ELCD & HALL ELCD REACTION GAS

SPECTROSCOPY APPLICATIONS
▪︎ ICP-MS COLLISION CELL REACTION GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
▪︎ CHEMISORPTION/PHYSISORPTION MEASUREMENT GAS

OTHER LAB APPLICATIONS
▪︎ CHEMICAL VAPOR DEPOSITION INSTRUMENTATION (CVD)

AID DEPOSITION PROCESS
▪︎ PLASMA CLEANING INSTRUMENTATION (UCP)
▪︎ HIGH EFFICIENCY PROCESS GAS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
▪︎ WEATHER BALLOON FILLING
▪︎ ELECTRONIC NOSE (eNOSE)
▪︎ 2-D CHROMATOGRAPHY
▪︎ 3-D CHROMATOGRAPHY

The following options are available:
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)

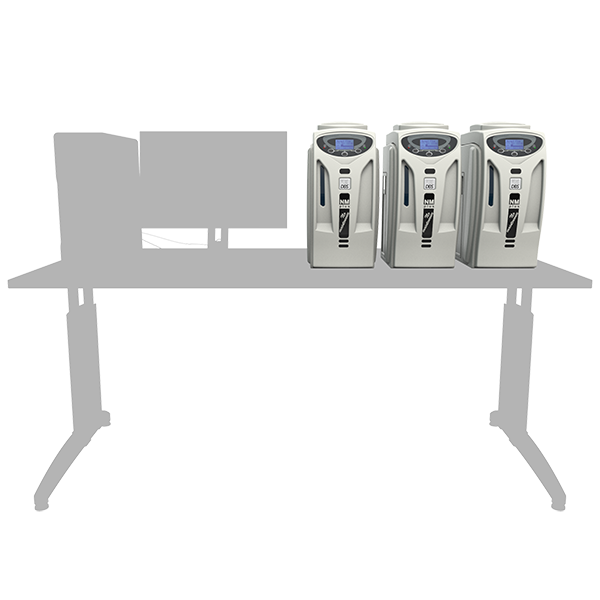

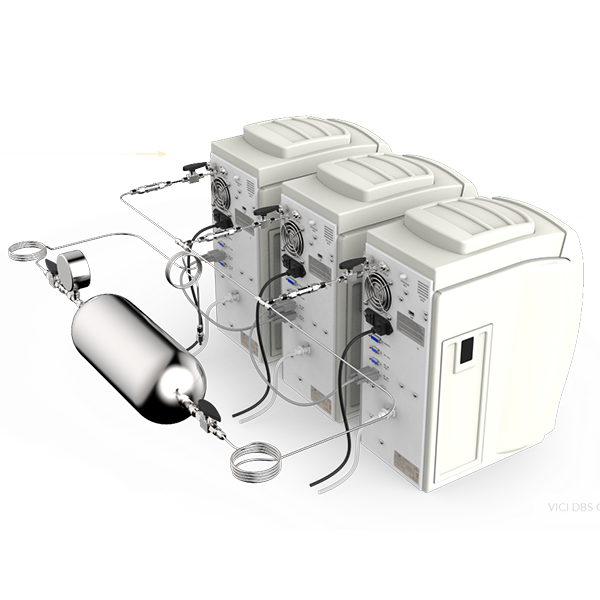

▪︎ Cascading hardware (standard or high purity)
▪︎ Autorefill
▪︎ H2 Sensor

Flow ml/min. 400
Purity 99.99996%+
Dew point at 7 bar -73 oC (-103F)
Outlet pressure bar (psi) 1.4 to 11 (20 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system No maintenance cold dual dynamic regeneration system
Deionized water quality minimum < 1 micro S/cm @25oC - 1 Mohm-cm@25oC - ASTM II
recommended < 0.2 microS/cm @25oC - 5 Mohm-cm @25oC - ASTM II
Internal water tank (liters) 2.5
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on / off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 205

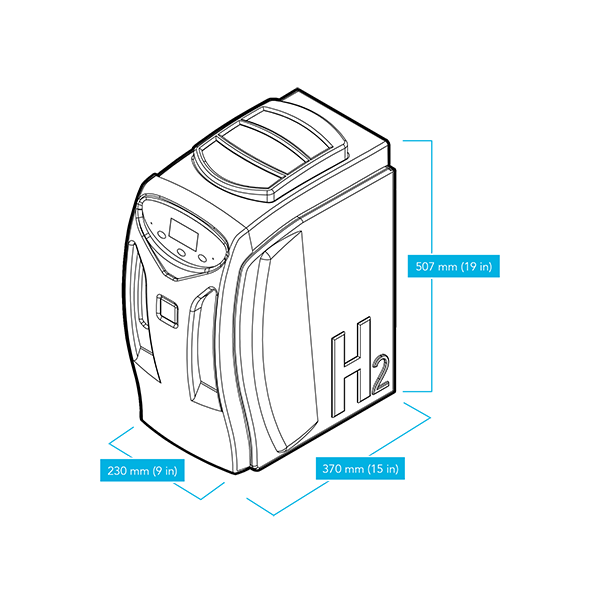

Product Dimensions mm (in.) 230W x 480H x 370D (9W x 19H x 15D)
Product Weight kg (lb) 15 (33)
Shipping dimensions 580W x 570H x 400D (22.8W x 22.4H x 15.7D)
Shipping weight kg (lb) 19 (42)
Operating temperature oC (oF) 15 to 35 (59 to 95)
Outlet connection 1 /8" Compression
Certification CE, MET, FCC
