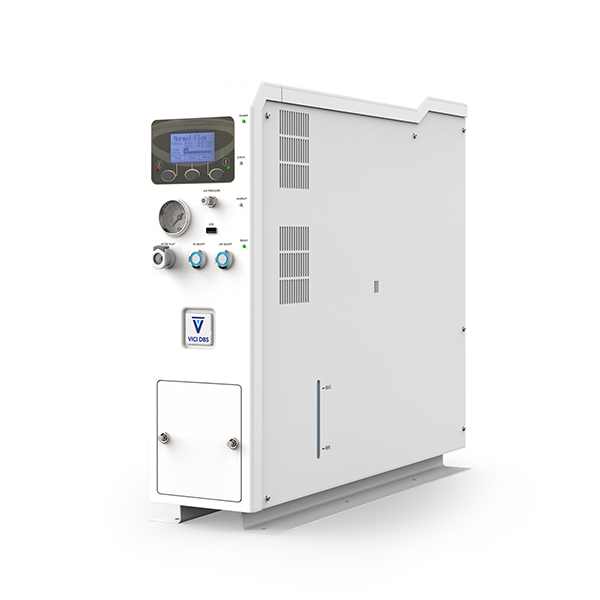

NM Plus 100 FID Tower Hydrogen Generator


Overview

The space-saving NM Plus 100 FID Tower Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen.

Deionized water is automatically loaded from smart internal system tanks with a 3-liter capacity, providing up to 3000 liters of H2 before a refill is required. The only recommended maintenance is simply replacing the internal deionizing cartridge.

NM PLUS 100 FID TOWER FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ No maintenance cold dual dynamic regeneration drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2-year standard warranty

View Product Brochure

Part# DB-FTNM100-EU (230-240V/50-60Hz)
Part# DB-FTNM100-US (115V/60Hz)
Part# DB-FTNM100-JP (100V/60Hz)

GC APPLICATIONS
▪︎ GC/MS CARRIER GAS
▪︎ GC CARRIER GAS
▪︎ GC FUEL GAS
▪︎ GC-ELCD & HALL ELCD REACTION GAS

SPECTROSCOPY APPLICATIONS
▪︎ ICP-MS COLLISION CELL REACTION GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
▪︎ CHEMISORPTION/PHYSISORPTION MEASUREMENT GAS

OTHER LAB APPLICATIONS
▪︎ CHEMICAL VAPOR DEPOSITION INSTRUMENTATION (CVD)

AID DEPOSITION PROCESS
▪︎ PLASMA CLEANING INSTRUMENTATION (UCP)
▪︎ HIGH-EFFICIENCY PROCESS GAS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS
▪︎ WEATHER BALLOON FILLING
▪︎ ELECTRONIC NOSE (eNOSE)
▪︎ 2-D CHROMATOGRAPHY
▪︎ 3-D CHROMATOGRAPHY

The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor

Flow mL/min 100
Purity >99.99996%
Dewpoint at 7 barg (100 psig) -73 ºC (-103 ºF)
Outlet pressure barg (psig) 1.4 to 11 (20 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system No maintenance cold dual dynamic regeneration system
Deionized water quality Minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II
Recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
Internal water tank (liters) 5
Safety Automatic shut down - internal/external hydrogen leak, overpressure, and low water
Display Touch screen with operating parameters, system status, and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 90
Product dimensions mm (in) 140W x 490H x 580D (5.5W x 19H x 22.8D)
Product weight kg (lbs) 23 (50)
Shipping dimensions mm (in) 770W x 590H x 410D (30.3W x 23.2H x 16.1D)
Shipping weight kg (lbs) 27 (59.5)
Operating temperature ºC ( ºF) 15 to 35 (59 to 95)
Outlet connection 1/8" compression
Certification CE, MET, FCC
