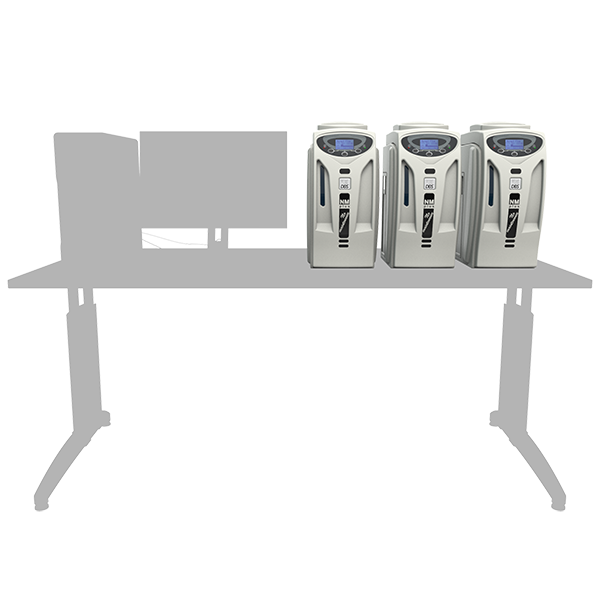

VICI DBS PG PLUS 300 HYDROGEN GENERATOR IN LAB CASCADING
VICI DBS PG PLUS 300 HYDROGEN GENERATOR CASCADING
VICI DBS PG PLUS 300 HYDROGEN GENERATOR SCHEMATIC DRAWING
Roll over image to zoom in
PG Plus 300 Hydrogen Generator
PG Plus 300 Hydrogen Generator
VICI DBS PG PLUS 300 HYDROGEN GENERATOR LINE DRAWING WITH DIMENSIONS
VICI DBS PG PLUS 300 HYDROGEN GENERATOR IN LAB CASCADING
VICI DBS PG PLUS 300 HYDROGEN GENERATOR CASCADING
VICI DBS PG PLUS 300 HYDROGEN GENERATOR SCHEMATIC DRAWING

PG Plus 300 Hydrogen Generator

VICI DBSSKU: DB-PHG300
Request Quote

Overview

The PG Plus 300 Hydrogen Generator provides superior performance with proprietary electrolytic cell technology combined with high quality components and a unique hydrogen drying solution.

PG PLUS 300 FEATURES:
▪︎ Flow rate 300 mL/min
▪︎ Purity >99.9996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Minimal maintenance
▪︎ Unique drying membrane - no desiccant cartridges required
▪︎ Unique 100% titanium electrolytic cell
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-PHG300-EU (230-240V/50-60Hz)
Part# DB-PHG300-US (115V/60Hz)
Part# DB-PHG300-JP (100V/60Hz)

GC APPLICATIONS
▪︎ GC-NPD PLASMA GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-FID FUEL GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS

OTHER LAB APPLICATIONS
▪︎ HYDROGENATION REACTORS
▪︎ HYDROGEN FUEL CELLS

The following options are available:
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity)
▪︎ Autorefill
▪︎ H2 Sensor

Flow mL/min 300
Purity >99.9996%
Dew point at 7 barg (100 psig) -25ºC (-13ºF)
Outlet pressure barg (psig) 0.5 to 11 (7 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system Regenerative Permeation Membrane
Deionized water quality minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II
recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
Internal water tank liters 2.5
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 180
Dimensions mm (in) 230W x 507H x 370D (9W x 19H x 15D)
Product weight kg (lb) 14 (31)
Shipping dimensions mm (in) 580W x 570H x 400D (22.8W x 22.4H x 15.7D)
Shipping weight kg (lb) 18 (39.5)
Operating temperature ºC (ºF) 15 to 35 (59 to 95)
Outlet connection 1/8" Compression
Certification CE, FCC, MET (UL and CSA compliant)
