PG Plus 100 Rack Hydrogen + Zero Air Generator

VICI DBSSKU: DB-RHG100

Price:
Quote Only

Overview

The PG Plus 100 Rack Hydrogen + Zero Air Generator uses the latest proton exchange membrane (PEM) technology to produce high purity hydrogen. The exclusive “No Maintenance” gas column cold regeneration system eliminates all the down time for maintenance that is typical of other systems on the market, assuring the best hydrogen purity at all times.

PG PLUS 100 RACK FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity 99.9996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty

View Product Brochure
View Zero Air Option Module Product Sheet

Part# DB-RHG100-EU (230-240V/50-60Hz)
Part# DB-RHG100-US (115V/60Hz)
Part# DB-RHG100-JP (100V/60Hz)

+ ZERO AIR GENERATOR OPTION
Part# DB-RH1800 (1.8 l/min)
Part# DB-RH5000 (5.0 l/min)

PRODUCTS FOR ANALYZERS
▪︎ PROCESS GC ANALYZERS DETECTOR FUEL & OXIDANT GAS
▪︎ EMISSIONS TEST ANALYZERS FUEL GAS & OXIDANT GAS
▪︎ STACK GAS ANALYZERS FUEL GAS & OXIDANT GAS

The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)

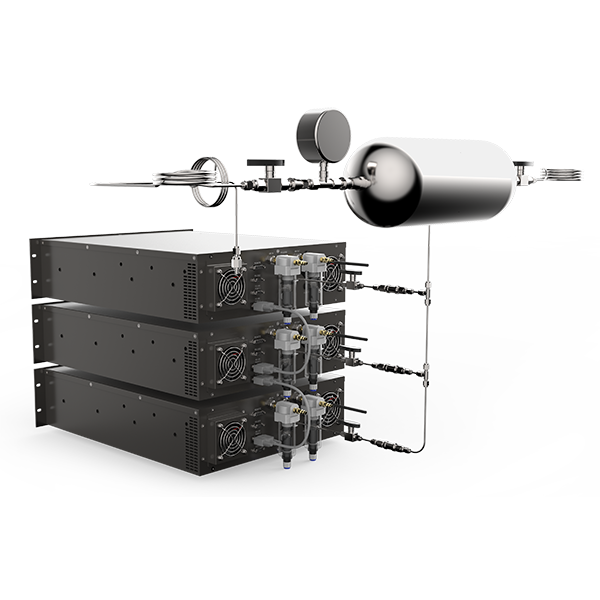

▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor
▪︎ Refill valve - replacing inlet pump (for H2O pressurized lines)
▪︎ Refill Station (water tank) 3U or 2U
▪︎ Rack enclosure

Flow mL/min 100
Purity >99.9996%
Dewpoint at 7 barg (100 psig) -25 ºC (-77 ºF)
Outlet pressure barg (psig) 0.5 to 11 (7 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system Regenerative Permeation Membrane
Deionized water quality Minimum <1 μS/cm @25 ºC - 1 MΩ-cm@25 ºC - ASTM II
Recommended <0.2 μS/cm @25 ºC - 5 MΩ-cm @25 ºC - ASTM II
External water tank liters External 10 liter bottle and internal pump
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 65
Product dimensions mm (in) 19" rack W x 3U H x 500D (19.6D)
Product weight kg (lb) 17 (37.4)
Shipping dimensions mm (in) 720W x 375H x 565D (28.3W x14.7H x 22.2D)
Shipping weight kg (lb) 21 (46)
Operating temperature ºC ( ºF) 15 to 35 (59 to 95)
Outlet connection 1/8" compression
Certification CE, FCC, MET (UL and CSA compliant)


+ Zero Air Generator Module Specs

Flow mL/min

1800 5000
Purity - hydrocarbons + CO <0.1 ppm <0.1 ppm
Inlet pressure barg (psig) 4.5 to 10 (65 to 145)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig) 5 (73)
Max HC in 100 ppm
Max CO in 50 ppm
