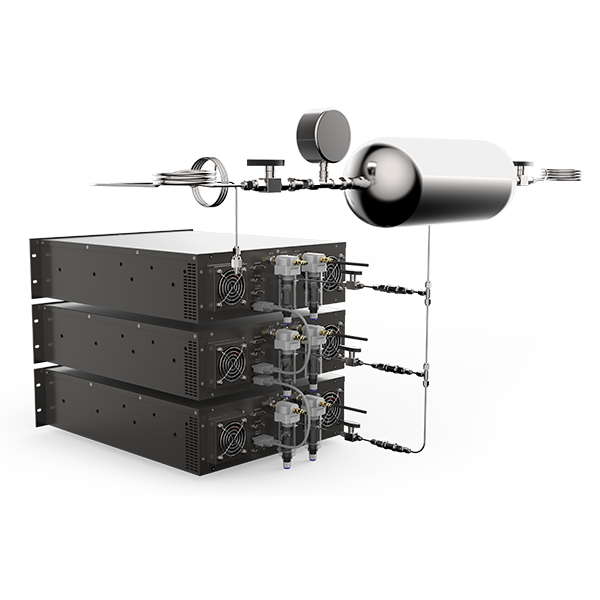

VICI DBS NM PLUS 1000 RACK HYDROGEN PLUS ZERO AIR GENERATOR CASCADING
VICI DBS NM PLUS 1000 RACK HYDROGEN PLUS ZERO AIR GENERATOR SCHEMATIC DRAWING
Roll over image to zoom in
NM Plus 1000 Rack Hydrogen + Zero Air Generator
NM Plus 1000 Rack Hydrogen + Zero Air Generator
NM Plus 1000 Rack Hydrogen + Zero Air Generator
VICI DBS NM PLUS 1000 RACK HYDROGEN PLUS ZERO AIR GENERATOR CASCADING
VICI DBS NM PLUS 1000 RACK HYDROGEN PLUS ZERO AIR GENERATOR SCHEMATIC DRAWING

NM Plus 1000 Rack Hydrogen + Zero Air Generator

VICI DBSSKU: DB-RNM1000
Price:
Quote Only
Request Quote

Overview

The NM Plus 1000 Rack Hydrogen + Zero Air Option Generator uses the latest proton exchange membrane (PEM) technology to produce high purity hydrogen. The exclusive “No Maintenance” gas column cold regeneration system eliminates all the down time for maintenance that is typical of other systems on the market, assuring the best hydrogen purity at all times.

NM PLUS 1000 RACK FEATURES:
▪︎ Flow rate 1000 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty

View Product Brochure
View Zero Air Option Module Product Sheet

Part# DB-RNM1000-EU (230-240V/50-60Hz)
Part# DB-RNM1000-US (115V/60Hz)
Part# DB-RNM1000-JP (100V/60Hz)

+ ZERO AIR GENERATOR OPTION
Part# DB-RH1800 (1.8 l/min)
Part# DB-RH5000 (5.0 l/min)

PRODUCTS FOR ANALYZERS
▪︎ PROCESS GC ANALYZERS DETECTOR FUEL & OXIDANT GAS
▪︎ EMISSIONS TEST ANALYZERS FUEL & OXIDANT GAS
▪︎ STACK GAS ANALYZERS FUEL & OXIDANT GAS

OTHER LAB APPLICATIONS
▪︎ ONBOARD GAS SUPPLY FOR MOBILE LABORATORIES

The following option is available:
▪︎ N/A

Flow ml/min. 1000
Purity >99.99996%
Dewpoint at 7 bar -73 ºC (-103 ºF)
Outlet pressure bar (psi) 1.4 to 11 (20 to 160)
Technology PEM (Proton Exchange Membrane) - 100% titanium cell
Drying system No maintenance cold dual dynamic regeneration system
Deionized water quality Minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II
Recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
External water tank (liters) External 10 liter bottle and internal pump
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 400
Product dimensions mm (in) 19" rack W x 3U H x 500D (19.6)
Product weight kg (lbs) 22 (48.5)
Shipping dimensions mm (in) 720W x 375H x 565D (28.3W x 14.7H 22.2D)
Shipping weight kg (lbs) 26 (57)
Operating temperature ºC ( ºF) 15 to 35 (59 to 95)
Outlet connection 1/8" compression
Certification CE, FCC, MET (UL and CSA compliant)


+ Zero Air Generator Module Specs

Flow mL/min

 1800 5000
Purity - hydrocarbons + CO <0.1 ppm <0.1 ppm
Inlet pressure barg (psig) 4.5 to 10 (65 to 145)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig) 5 (73)
Max HC in 100 ppm
Max CO in 50 ppm
